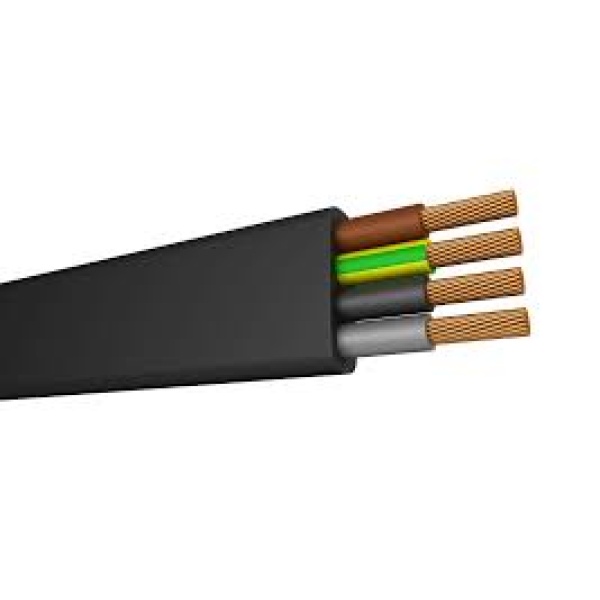

KAUÇUK KABLO 4×2,5

CABLE STRUCTURE
Conductor
Separator
Insulation
Core Identification
Inner Sheath
Outer Sheath
Color
Electrolytic annealed, class 5 stranded plain copper wires
( tinned conductor on request)
A suitable tape may be applied over the conductor
EI4 Type rubber (EPR) compound
Acc. to HD 308
EM2 or EM3 type elastomer compound
(if outer sheath thickness is greater than 2.4 mm)
EM2 Type elastomer compound
Black (other colors on request)

EN 50525-2-21, DIN VDE 0282-4, BS 6500
BS 7919, IEC 60245-4
EN 50525-1, HD 22.1, DN VDE 0282-1,
IEC 60245-1
HD 516, DIN VDE 0298-300
EN 50395, IEC 60245-2
EN 50396, IEC 60245-2
EN / IEC 60228, HD 383, DIN VDE 0295,
BS 6360
-25ºC / +60ºC
-35ºC / +90ºC
Max. 200ºC
Max. +50ºC
-25ºC
EN 50565-1 Table. 3
15 N / mm2
IEC 60364-5-52, VDE 0298-4, EN 50565-1
EN 60332-1-2, DIN VDE 0482-332-1-2
EN 50363-2-1, IEC 60811-404
Construction
General Requirements
Guide to Use
Electrical Tests
Non – Electrical Tests
Conductor Resistance
Working Temperature
In Mobile Use
in Fixed Use
Conductor Short – Circuit Temp.
Temp. on Cable Surface
Min. Installation Temp.
Min. Bending Radius
Max. Tensile Load
Current Carrying Capacities
Flame Retardant
Oil Resistant
No
Corrosivity
Bending
Radius
6x
Working
Tempature
-25
+60
Uv
Resistant
450/750
V
Rated
Voltage
It’s allowed up to 1.000 V AC or DC using for fixed and protected installations.

Application
This flexible cable is suitable to use as power supply and conrol cable in fixed or mobile connections and
equipments like heavy machineries, switch boards, industrial equipments, power sources etc.

Notes for current carrying capacities:
Current carrying capacities are according to in open air, with adequate ventilation and ambient temperature of 30 °C
For fixed installation :
Based on IEC 60364-5-52 : 2009 Table B.52.1 and Table B.52.12
Refered to – Reference installation method F for Single cores and three loaded cores in trefoil installation.
– Reference installation method E for Multi cores for 2 core cables; two cores loaded and
for 3-4-5 core cables; three cores loaded
– Reference installation method E for Multi cores for 6 cores and above;
All cores loaded except green / yellow (earth) core
– Correction factors for ambient temperature according to Table B.52.14
– The current ratings are based on conductor operating temperature of 90 °C
For mobile flexing installation :
Based on EN 50565-1:2014 Table C.2, C.3 and VDE 0298-4 Table 13
Refered to – Single cores are bunched. (installed as 3 cables in trefoil)
– The current ratings are based on conductor operating temperature of 60 °C
– For 2 core cables, 2 cores are loaded.
– For 3,4 and 5 core cables, 3 cores are loaded.
– For Multi core cables has 6 cores and above, all cores loaded except green/yellow (earth) core
– For current rating derating factors of Multi core cables according to VDE 0298-4 Table 26
– Correction factors for ambient temperature according to VDE 0298-4 Table 17 and EN 50565-1 Table C.3
Temperature correction factors
Ambient temperature °C 30 35 40 45 50 55
Correction factor for fixed installation 1,00 0,96 0,91 0,87 0,82 0,76
Correction factor for mobile installation 1,00 0,91 0,82 0,71 0,58 0,41
