– Taban sabitleme;
– IP65 koruma sınıfı (IEC/EN 60529);
– Farklı oranlarda mevcuttur: 1:12, 1:33, 1:50, 1:75, 1:100, 1:150, 1:200, 1:400 (istek üzerine isteğe bağlı);
– Doğrudan oranlı olarak mevcuttur: 1:50, 1:75, 1:100 (diğerleri talep üzerine doğrudan oran);
– Mikro anahtarlar:
1. 4 mikro anahtarlı cihaz;
2. Çalışma noktası bir kalibrasyon vidası ile ayarlanabilir;
3. her anahtarın içinde 1NA + 1NK vardır;
4. NC kontaklar için pozitif açılma.
Worm screw limit switches FGR series are in conformity
with the following standards or other normative
documents:
EN 60947-1 2007/A1 : 2011/A2 : 2017
EN 60947-5-1 2004/A1 : 2009/AC : 2004/AC : 2005
EN 60204-1 2006/A1 : 2009
EN 60529 1991/A1 : 2000/A2 : 2013
EN 50581 2012
IEC 63000 2016
and therefore follow the
provision of the Directives:
2014/35/UE
2014/33/UE
2011/65/UE
2015/863/UE

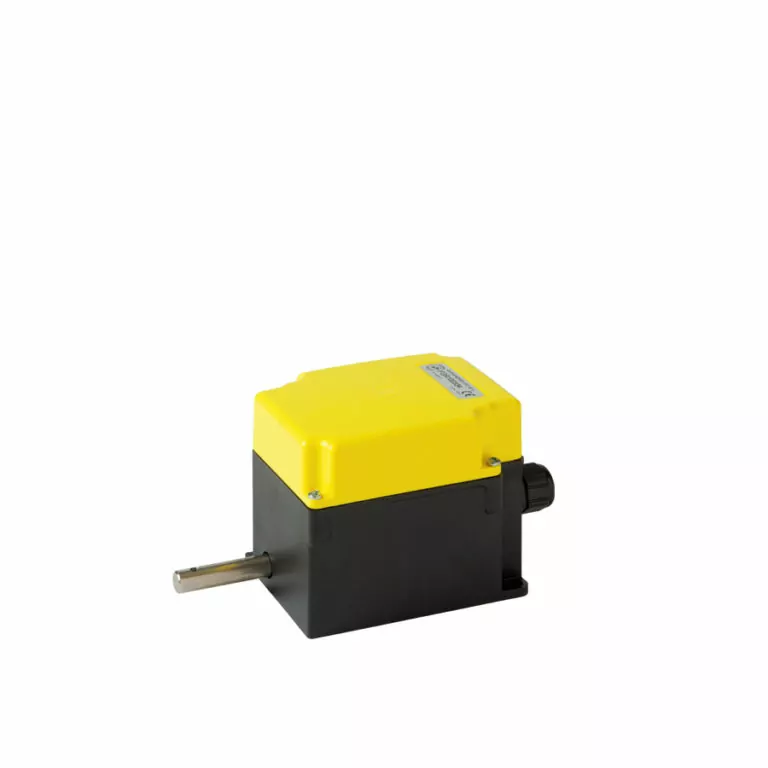

ROTARY GEAR LIMIT SWITCH
Technical data
Case thermoplastic glass fiber reinforced
Ratio 1:12 – 1:33 – 1:50 – 1:75 – 1:100
– 1:150 – 1:200 – 1:400
Direct ratio 1:50 – 1:75 – 1:100
Protection class IP65
Shaft type – steel
– double overhang shaft
version available
Fixing type base
front (flanged version)
Microswitches up to 4
Cam block self-lubricating with transparent
support for easier cam viewing
Cable entry M20 or M16 (max 4)
Temperature – operating: -25 … +70°C
– storage: -30 … +70°C
Options – 5 cam shape options
– 20 pinion options
Microswitch technical data
Operating temperature -25 … +85°C
Minimum life expectancy mechanical
electrical
one million of cycles
half million of cycles
Rated thermal current Ith 8 A
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 1500 V
Rated operating current le resistive load
inductive load
8 A – 250 V
3 A – 250 V
Pollution degree 2
Protection against electric shock class II
