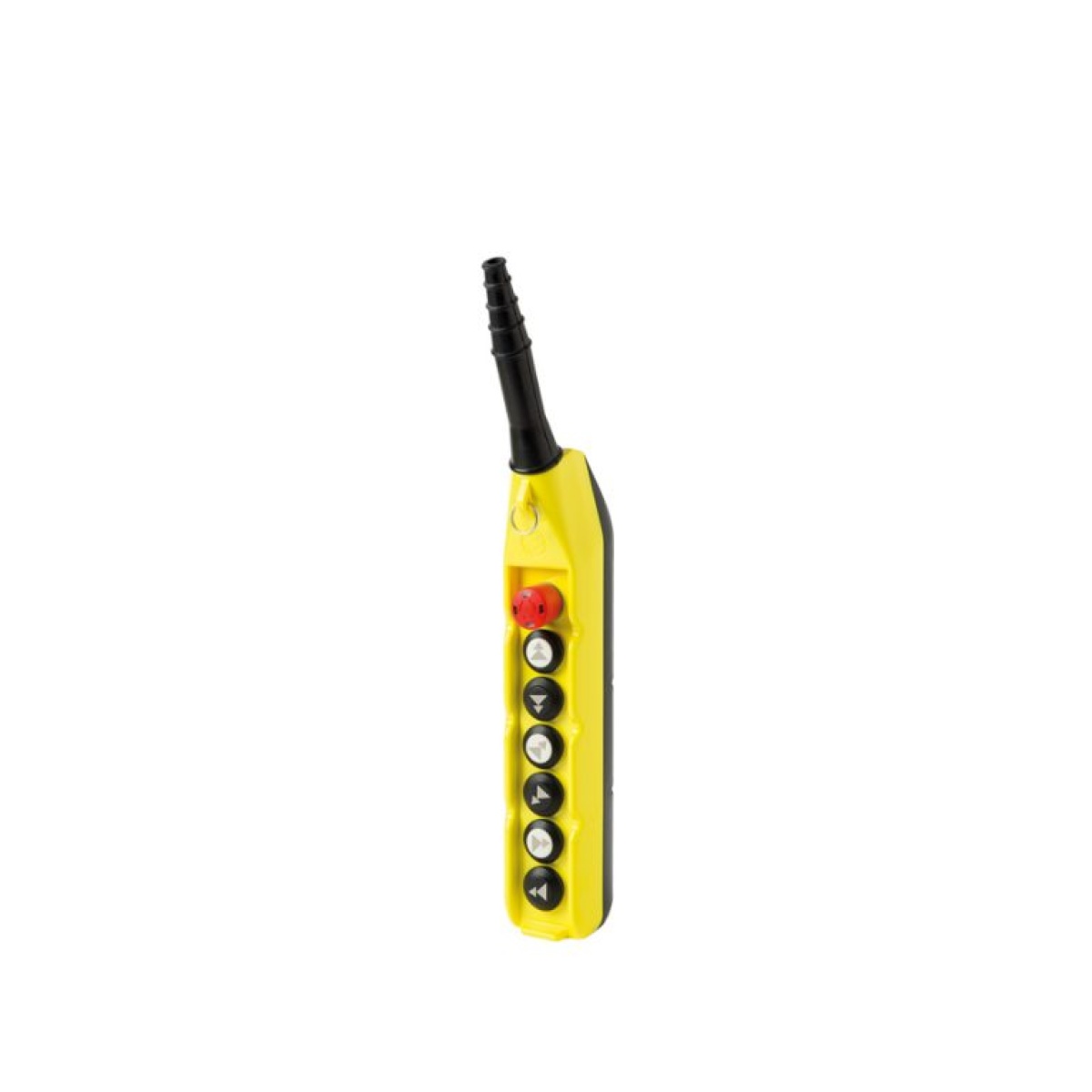

PLN07 SERİSİ – Vinç için 7 butonlu tek sıra askılı kontrol istasyonu – Yeni hat

Özellikler
Çift yönlülük mekanik olarak kilitlenmiştir;
IP65 Çift izolasyon (IEC/EN 60529);
EN 60204-1, FEM 9.941’e göre lazer markalamalı lazerle oyulmuş semboller;
Darbeye ve ısıya dayanıklı;
Mevcut versiyonlar: tek veya çift hızlı motorlar için;
UL/CSA gereklilikleriyle, talep üzerine V0 malzemeyle de mevcuttur, UL onaylıdır;
Kit versiyonunda mevcuttur (PLN lazerle oyulmuş butonlarla).

Kod konfigürasyonu
PLN07D6 – Çift hız (MANTAR:1NK – YUKARI:HAYIR+HAYIR – AŞAĞI:HAYIR+HAYIR – UP45°:HAYIR+HAYIR – AŞAĞI45°:HAYIR+HAYIR – SOL:HAYIR+HAYIR – SAĞ:HAYIR+HAYIR)

• Taşıma Sistemi – UygulamaAsma vinç
• İşleme Sistemi – Konfigürasyoniki hız
• DiziTAŞIMA SİSTEMİ, PLN
• Features
  • Bi-directionality is mechanically interlocked;
  • IP65 Double insulation (IEC / EN 60529);
  • Laser engraved symbols with laser marking according to EN 60204-1, FEM 9.941;
  • Shock proof and heat resistant;
  • Available versions: for single or double speed motors;
  • Available with UL/CSA requirements, upon request also in V0 material, UL approved;
  • Available in kit version (with PLN or PL laser engraved push buttons).
• Single row pendant control station
  from 5 to 12 push buttons for crane
• General characteristics
  Compliant to standards IEC / EN60947-5-1
  Material ABS
  Material Group II
  Pollution class 3
  Temperature operating
  storage
  -25°C … +70°C
  -30°C … +70°C
  Cable entry rubber cable sleeve Ø 9 … 24 mm
  Electrical characteristics – Contact blocks
  Marking
  Rated insulation voltage [Ui] 690 V *
  Rated impulse withstand voltage [Uimp] 4 kV *
  Frequency 50/60 Hz *
  Rated thermal current [Ith] 16 A *
  Rated thermal current in enclosure [Ithe] 10 A
  Rated operational current [Ie]
  AC-15 alternate current type: PL0040.. 24 V 16 A *
  60 V 12 A
  120 V 8 A
  240 V 6 A
  400 V 4.5 A
  440 V 3.5 A
  500 V 3 A *
  690 V 1 A
  DC-13 direct current type: PL0040.. 24 V 2 A *
  48 V 1.2 A
  60 V 0.85 A
  110 V 0.4 A
  220 V 0.25 A *
  Conditional short circuit withstand current 1000 A *
  Fuses rating gC 10 A * – 500 V
  Contact insulation resistance ≤ 25 mΩ
  Switching mechanism type: PL0040.. slow break double gap contacts
  Positive operation NC contact blocks – positive opening
  Operating force 4 N
  Electric durability AC-15 1 A 1.5 millions of cycles
  2 A 0.5 millions of cycles
  3 A 0.25 millions of cycles
  Terminal type type: PL0040.. M3.5 screw terminals
  Terminal capacity type: PL0040.. N° 1 or 2 flexible and solid
  conductor 1 … 2.5 mm²
  Climate resistance IEC68 part 2-3
  IEC68 part 2-30
  damp heat, steady state
  damp heat, cyclic
  UL508 characteristics
  Rated insulation voltage [Ui] 10 A – 600 V ac / 2.5 A – 125 V dc
  Rated impulse withstand voltage [Uimp] A600-Q600
