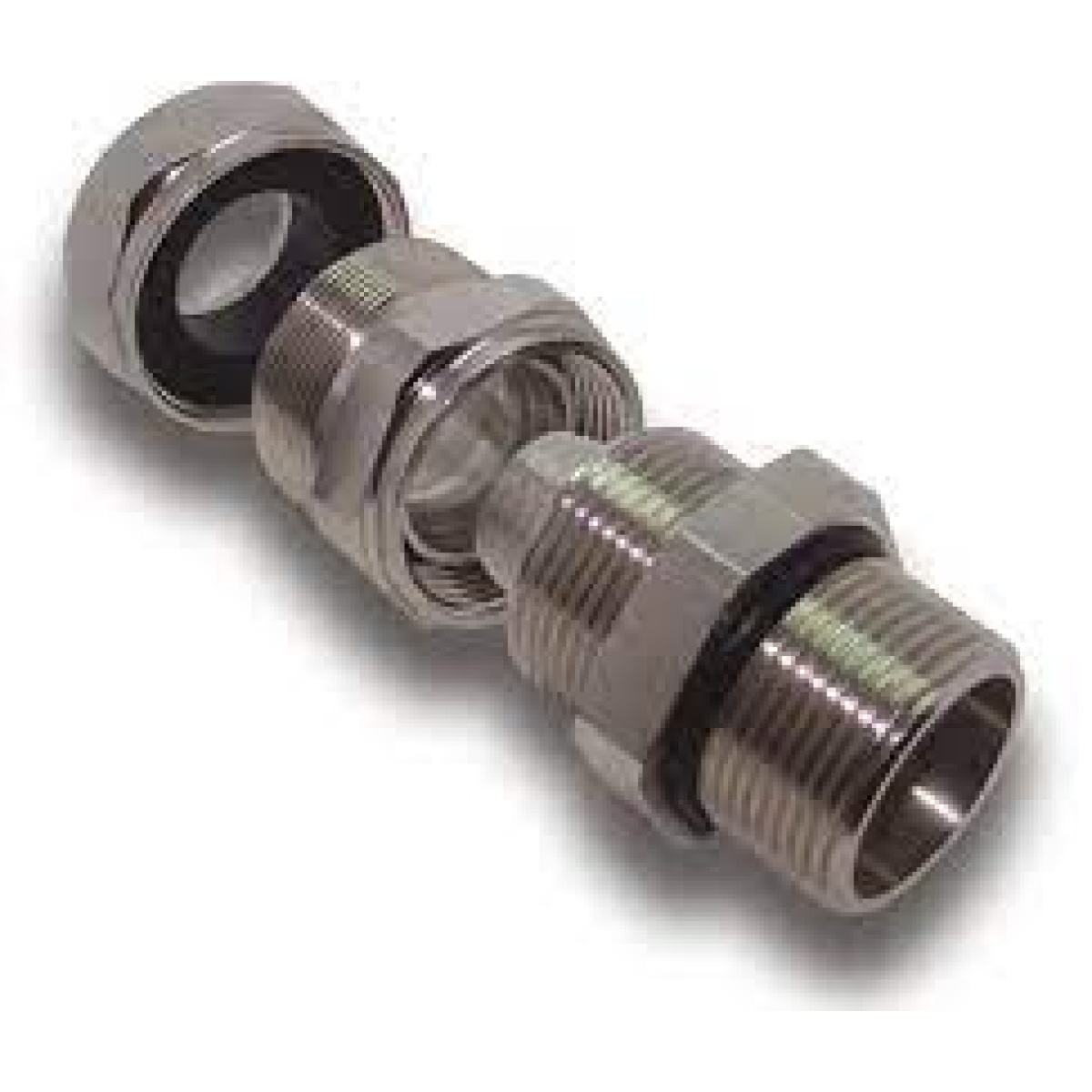

kba6nb bimed exproof rekor zırhlı kablo rekoru

Cable Glands for Armoured Cables
NPT 2″ / 47,0-60,0mm / TL=28,0mm
KBA6N

169 adet stokta

Stok kodu: KBA6NB Kategoriler: Etiketler: , , , , ,
Açıklama

kba6nb bimed exproof rekor zırhlı kablo rekoru

Cable Glands for Armoured Cables
NPT 2″ / 47,0-60,0mm / TL=28,0mm
KBA6N

Technical Details
Material Body , Cap Brass, Brass Nickel Plated, Stainless Steel, Aluminium
Inner Part Brass, Brass Nickel Plated, Stainless Steel, Aluminium
Seal CR (Chloroprene) , Silicone
O-Ring CR (Chloroprene) , Silicone
Ingress Protection Rating IP 68 – 5 Bar, 30 min
IP 66
Operating Temperature Seal Material
CR (Chloroprene) Silicone
Standard -40°C to +100°C -60°C to +130°C
LT Type -40°C to +80°C -60°C to +80°C
Equipment For Gas & Dust potentially explosive atmospheres
Suitable for use in Group II Gas Group IIC ZONE1/ZONE2
Group III Dust Group IIIC ZONE21/ZONE 22
Equipment Marking Ex II 2GD Ex db IIC Gb Ex eb IIC Gb Ex tb IIIC Db
Marking Example * BMD KBA.. CE 0722 II 2GD Ex db IIC Gb Ex eb IIC Gb Ex tb IIIC Db
Ta -60°C to +130°C IP66/68 CESI 13 ATEX 033X IECEx CES 13.0013X
Thread Type Metric (M) ISO Pitch 1,5
NPT (N) ANSI ASME B1.20.1
Other thread types also available upon request.
Cable Type SWA – AWA
Accessories Lock nuts
Gaskets ( Washers )
Serrated Washers
Shrouds
Earth tags
Remarks O-ring available in Metric outer threads.
Accessories must be ordered separately.
* The standard marking consists ATEX & IECEx only.
Outer Thread Size (Male) NPT 2″
Thread Length (TL) 28,0 mm
Ø (D) 94,0 mm
Clamping Range Inner Sheath Ø min-max 40,0 – 52,0 mm
Outer Sheath Ø min – max 47,0 – 60,0 mm
Armour Wire Ø min-max 1,80 – 2,80 mm
Spanner Width Cap 85 mm
Upper Body 85 mm
Lower Body 85 mm
max. Height (H) 111,5 mm
Part Number KBA6N
