Technical Details
Material Body , Cap Brass, Brass Nickel Plated, Stainless Steel 316L, Aluminium
Inner Part Brass, Brass Nickel Plated, Stainless Steel 316L, Aluminium
Seal CR (Chloroprene) , Silicone
O-Ring CR (Chloroprene) , Silicone
Spring Speacial Copper Alloy
Ingress Protection Rating IP 68 – 5 Bar, 30 min
IP 66
Operating Temperature Seal Material
CR (Chloroprene) Silicone
Standard -40°C to +100°C -60°C to +130°C
Equipment For Gas & Dust potentially explosive atmospheres
Suitable for use in Group II Gas Group IIC ZONE1/ZONE2
Group III Dust Group IIIC ZONE21/ZONE 22
Equipment Marking Ex II 2GD Ex db IIC Gb Ex eb IIC Gb Ex tb IIIC Db

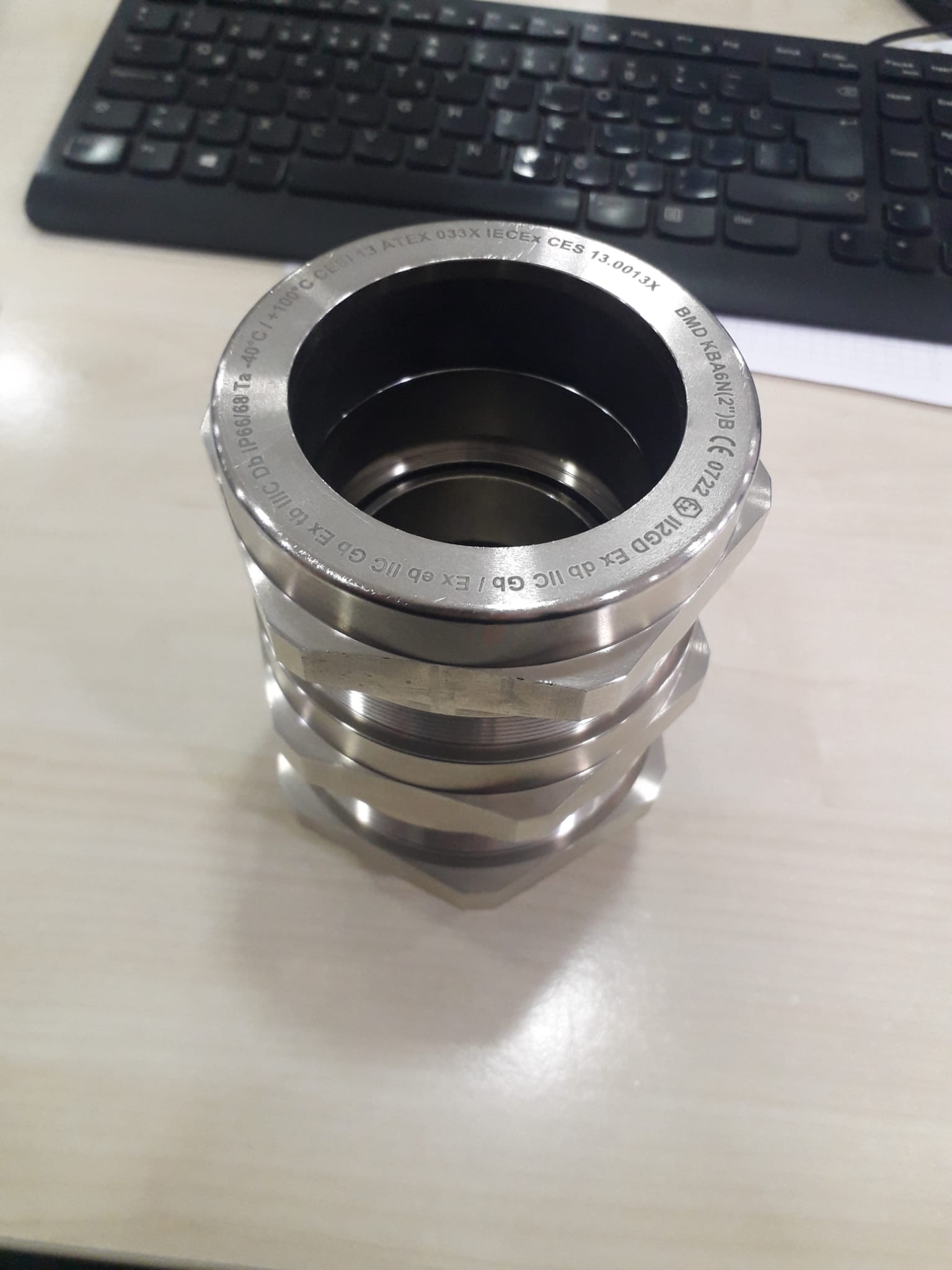

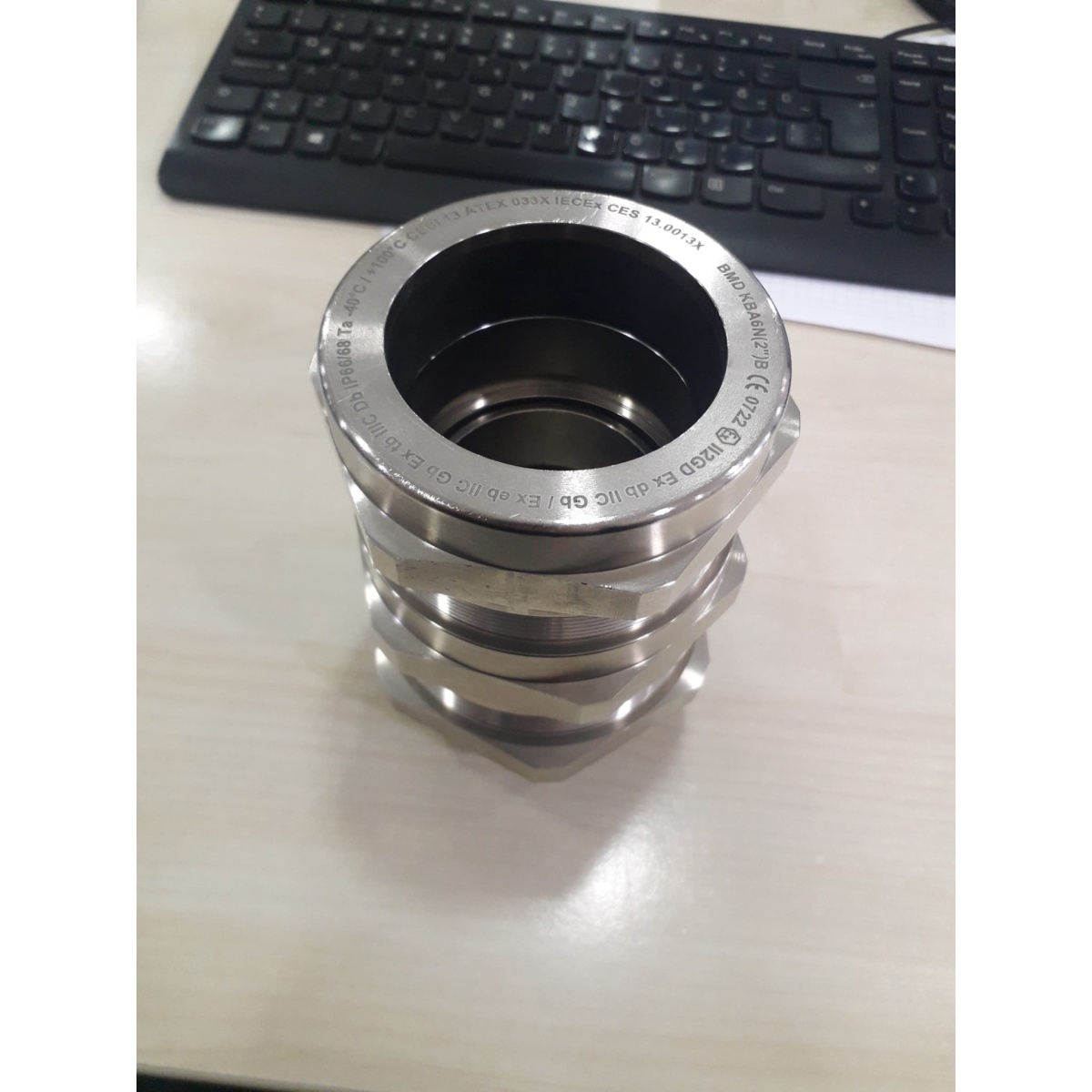

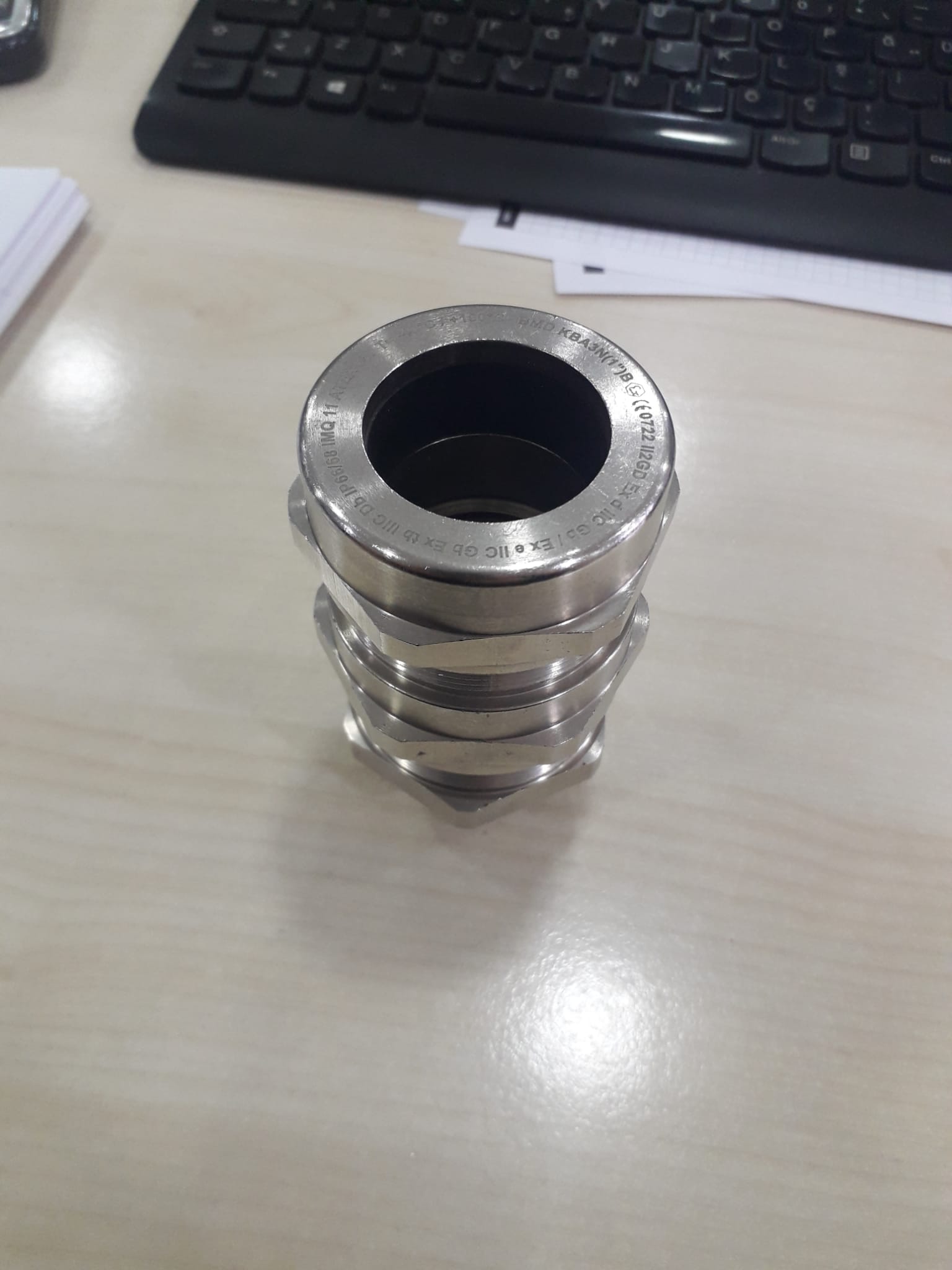

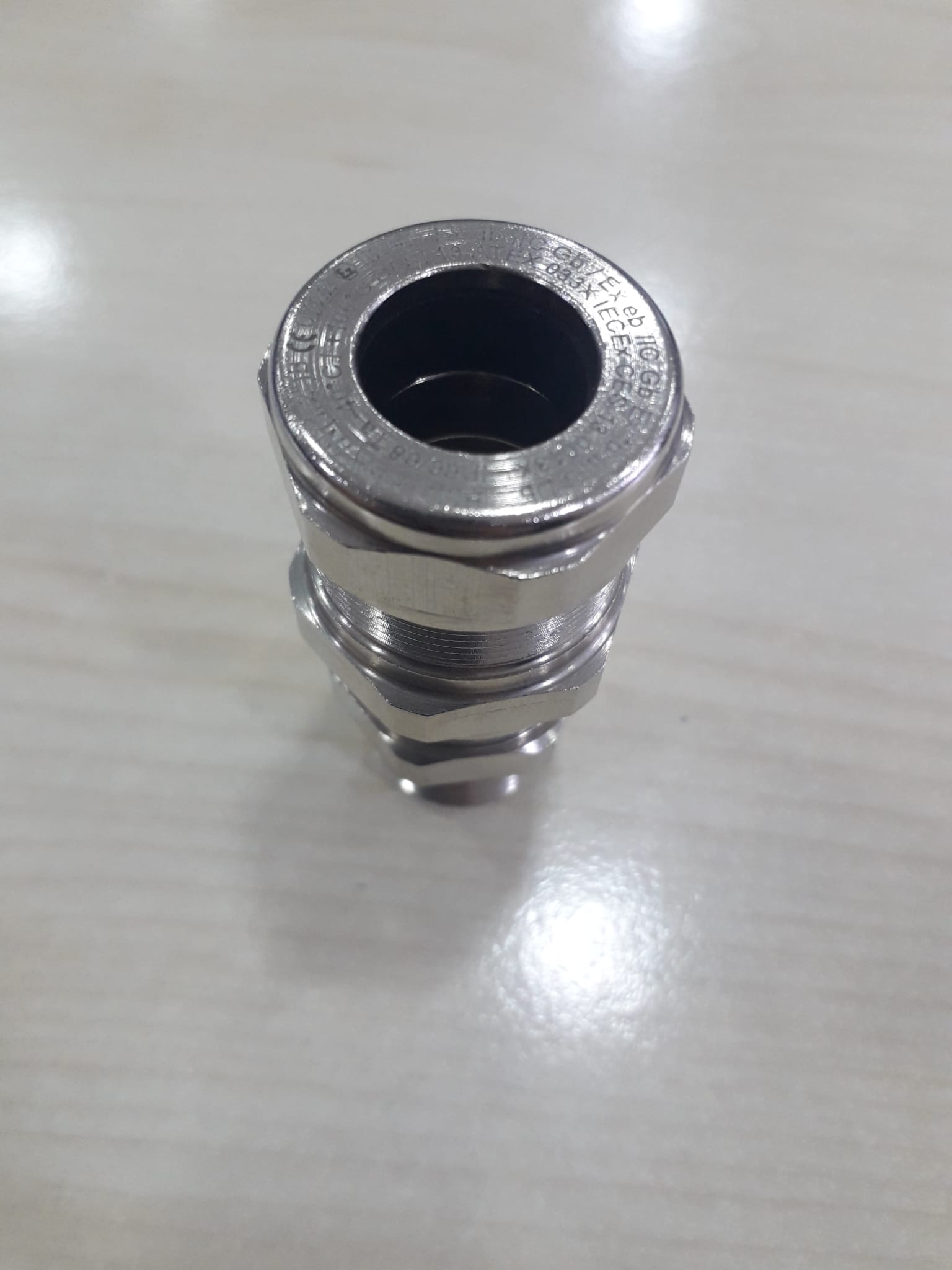

Marking Example * BMD KBA.. CE 0722 II 2GD Ex db IIC Gb Ex eb IIC Gb Ex tb IIIC Db
Ta -60°C to +130°C IP66/68 CESI 13 ATEX 033X IECEx CES 13.0013X
Thread Type Metric (M) ISO Pitch 1,5
NPT (N) ANSI ASME B1.20.1
Other thread types also available upon request.
Cable Type SWA – AWA
Accessories Lock nuts
Gaskets ( Washers )
Serrated Washers
Shrouds
Earth tags
Remarks O-ring available in Metric outer threads.
Accessories must be ordered separately.
* The standard marking consists ATEX & IECEx only.
Outer Thread Size (Male) NPT 1″
Thread Length (TL) 26,0 mm
Ø (D) 57,0 mm
Clamping Range Inner Sheath Ø min-max 15,0 – 25,0 mm
Outer Sheath Ø min – max 20,0 – 33,0 mm
Armour Wire Ø min-max 1,20 – 1,80 mm
Spanner Width Cap 52 mm
Upper Body 52 mm
Lower Body 48 mm
max. Height (H) 80,5 mm
Part Number KBA3N
-30%
Cable Glands for SWA and AWA Cables 1/2'' Ex Zırhlı Metal Kablo Rakoru
₺ 12.383,93 Orijinal fiyat: ₺ 12.383,93.₺ 8.668,76Şu andaki fiyat: ₺ 8.668,76.
FİYAT: € 234,22 + KDV
FİYAT: € 234,22 + KDV

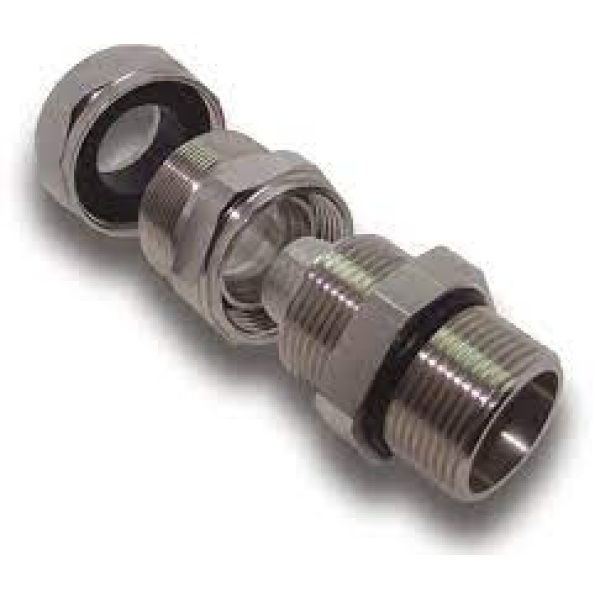

Cable Glands for SWA and AWA Cables 2'' Ex Zırhlı Metal Kablo Rakoru
₺ 91.249,98 Orijinal fiyat: ₺ 91.249,98.₺ 63.875,17Şu andaki fiyat: ₺ 63.875,17.
FİYAT: € 1.725,84 + KDV
FİYAT: € 1.725,84 + KDV
Cable Glands for SWA and AWA Cables 1” Ex Zırhlı Metal Kablo Rakoru
₺ 26.071,42 Orijinal fiyat: ₺ 26.071,42.₺ 18.249,89Şu andaki fiyat: ₺ 18.249,89.
FİYAT: € 493,09 + KDV

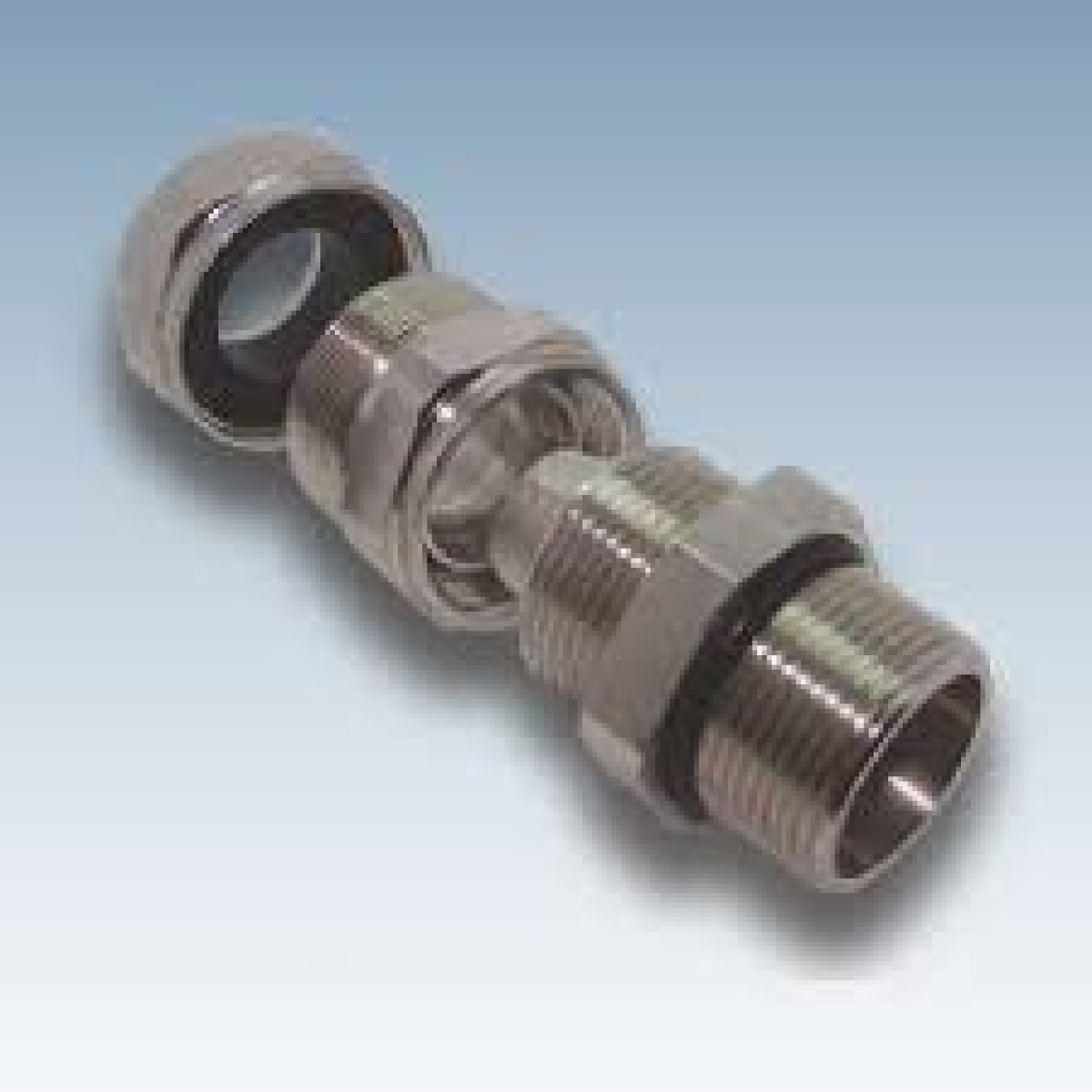

Cable Glands for SWA and AWA Cables
NPT 1″ / 20,0-33,0mm / TL=26,0mm
KBA3N
1247 adet stokta
Stok kodu:
KBA3NB
Kategoriler: Exproof Ürünler
