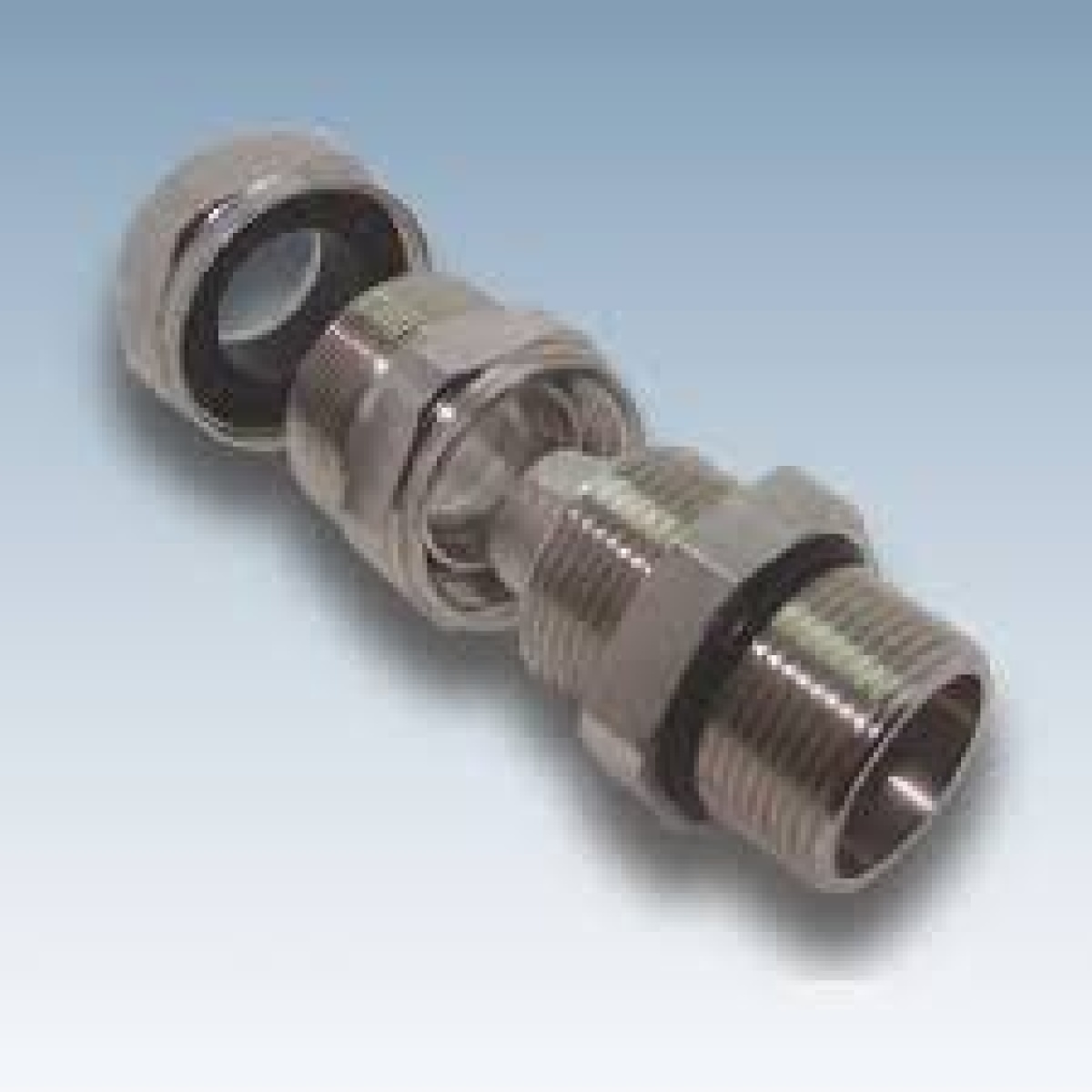

Cable Glands for SWA and AWA Cables 1/2” Ex Zırhlı Metal Kablo Rakoru

Cable Glands for SWA and AWA Cables 1/2”  kba1nb bimed exproof rekor zırhlı kablo rekoru

Cable Glands for SWA and AWA Cables
NPT 1/2″ / 8,5-16,0mm / TL=21,0mm
KBA1N

File Number Standard
CESI 13 ATEX 033X EN 60079-0:2012+A11:2013, EN 60079-1:2014, EN 60079-
7:2015, EN 60079-31:2014
IECEx CES 13.0013X EN 60079-0:2012; EN 60079-1:2007; EN 60079-7:2007; EN
60079-31:2009
TAE00003WU IEC/EN60079-0, IEC/EN60079-7, IEC/EN60079-31
IEC/EN60079-1,

Technical Details
Material Body , Cap Brass, Brass Nickel Plated, Stainless Steel 316L, Aluminium
Inner Part Brass, Brass Nickel Plated, Stainless Steel 316L, Aluminium
Seal CR (Chloroprene) , Silicone
O-Ring CR (Chloroprene) , Silicone
Spring Speacial Copper Alloy
Ingress Protection Rating IP 68 – 5 Bar, 30 min
IP 66
Operating Temperature Seal Material
CR (Chloroprene) Silicone
Standard -40°C to +100°C -60°C to +130°C
Equipment For Gas & Dust potentially explosive atmospheres
Suitable for use in Group II Gas Group IIC ZONE1/ZONE2
Group III Dust Group IIIC ZONE21/ZONE 22
Equipment Marking Ex II 2GD Ex db IIC Gb Ex eb IIC Gb Ex tb IIIC Db
Marking Example * BMD KBA.. CE 0722 II 2GD Ex db IIC Gb Ex eb IIC Gb Ex tb IIIC Db
Ta -60°C to +130°C IP66/68 CESI 13 ATEX 033X IECEx CES 13.0013X
Thread Type Metric (M) ISO Pitch 1,5
NPT (N) ANSI ASME B1.20.1
Other thread types also available upon request.
Cable Type SWA – AWA
Accessories Lock nuts
Gaskets ( Washers )
Serrated Washers
Shrouds
Earth tags
Remarks O-ring available in Metric outer threads.
Accessories must be ordered separately.
* The standard marking consists ATEX & IECEx only.
Outer Thread Size (Male) NPT 1/2″
Thread Length (TL) 21,0 mm
Ø (D) 31,5 mm
Clamping Range Inner Sheath Ø min-max 6,0 – 11,5 mm
Outer Sheath Ø min – max 8,5 – 16,0 mm
Armour Wire Ø min-max 0,70 – 1,25 mm
Spanner Width Cap 29 mm
Upper Body 29 mm
Lower Body 25 mm
max. Height (H) 51,0 mm
Part Number KBA1N
